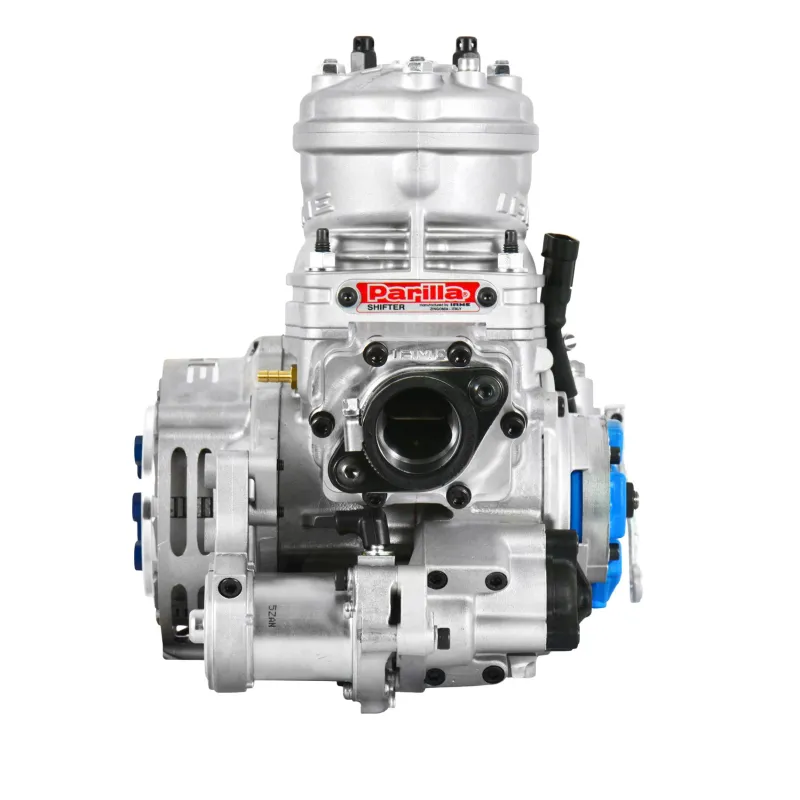

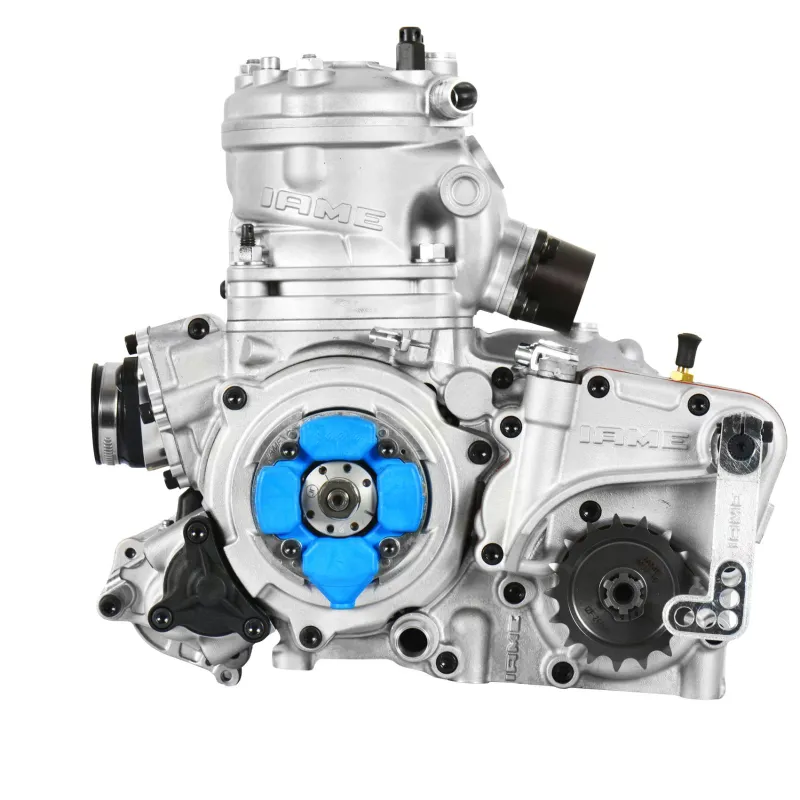

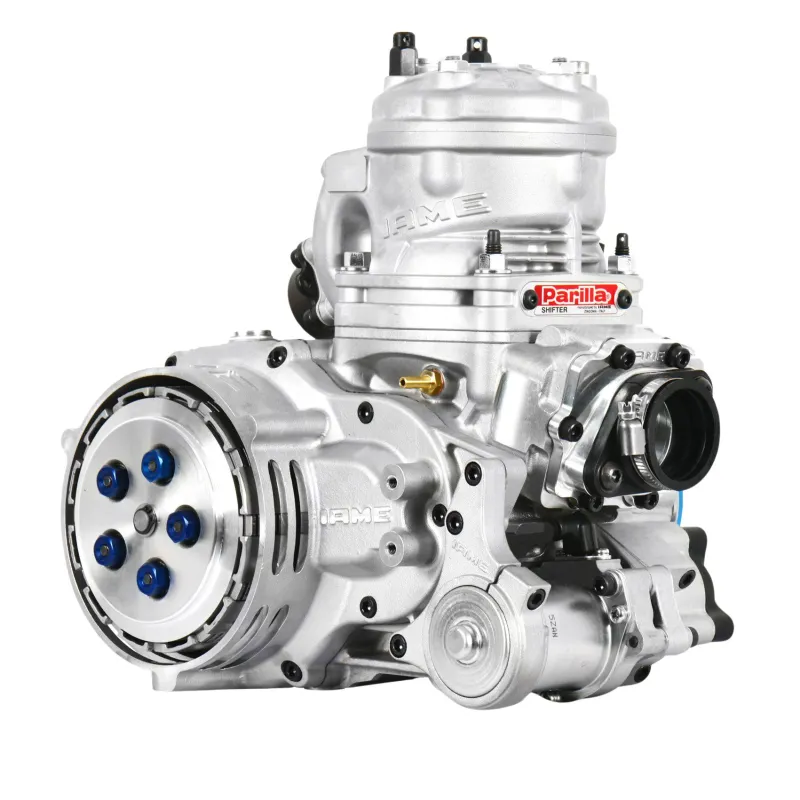

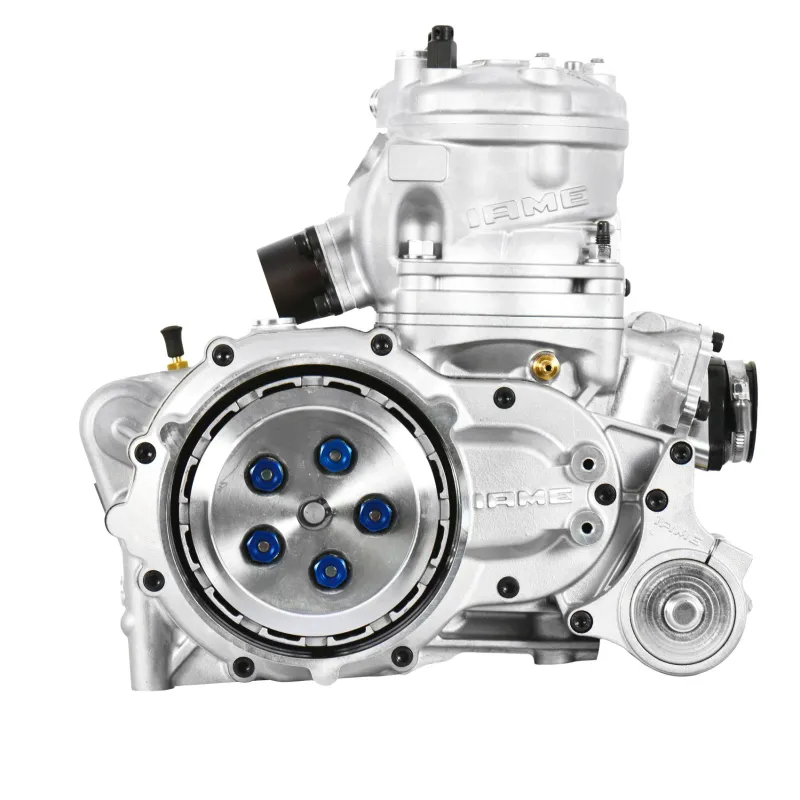

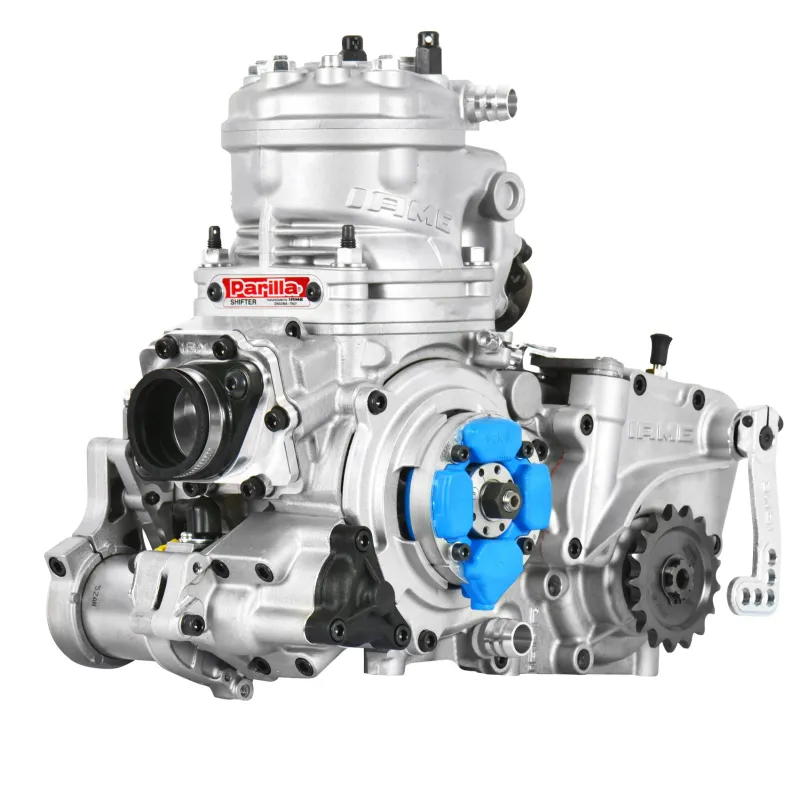

Engine 175cc X30 SUPER SHIFTER IAME
Orderable
IAM1284
€4,894.98
The X30 Super Shifter is the natural evolution of the X30 Shifter, offering an unparalleled driving experience thanks to its 175cc displacement.
The ideal solution for all riders who want to race at the highest level with a gear engine, with the advantages of electric starting.
The X30 Super Shifter combines the performance of the best KZ engines with the typical characteristics of single-engine classes: consistent performance, reliability, consistency of performance and ease of use.
Order now and receive it on...
✔ between 4/7/26 and 4/14/26 with Worldwide economy
✔ between 4/3/26 and 4/7/26 with Worldwide express
✔ 4/1/26 with Pick-up in Drake Store (Italy)
The X30 Super Shifter with gearbox combines the advanced technology of the multi-champion Reedster KF engine, with the practical solutions and reliability of the X30 platform.
Its main feature is the new and impressive displacement of 175cc, which allows a maximum torque of 27.00 Nm at 12,500 RPM and 49 Hp power, without the aid of the exhaust valve. The X30 Super Shifter is able to satisfy the most demanding and talented riders all over the world! The strength of the SUPER X30 is definitely the power, but certainly the maintenance does not go unnoticed since IAME recommends to replace the piston in competitive use about every 60 lt of use, or earlier if the piston cylinder clearance exceeds 0.17mm. For non-competitive use should occur about every 90lt of mixture or in any case when the play between cylinder and piston exceeds 0.17mm.
Every 30 litres a piston inspection is recommended to check the state of the piston. As regards: rod head cage; axis coupling and trimming, we recommend in competitive use the replacement after about 90lt of use. For NON-COMPETITIVE use the replacement can be performed after about 130lt. As for bench bearings, with roller bearings the life is equal to that of an entire sports season of use (about 350/400 liters).
With regard to the rod cage, the replacement is performed after about 60lt of use; while in non-competitive use it is recommended the replacement after about 90lt of use. The connecting rod in competitive use, it is recommended to replace after about 180 liters of use. For non-competitive use, replacement can be performed after approximately 260 litres.
Were you looking for a powerful, reliable and low maintenance engine? SUPER SHIFTER X30, is the only answer!
With the SUPER SHIFTER X30 175cc engine, you can participate in the special category of the IAME X30 CHALLENGE championship.
MAIN FEATURES:
- Four-petal flap valve
- Centrifuge cast iron cylinder
- Cooling circuit in the crankcase, cylinder and head
- Motor shaft on 3 support
- Primary pair of rectified straight teeth
- Clutch multidisco with parastrappi - flat push-disc with bearing reggispinta
- Approved 6 speed gearbox
- Gears with gear in class 8 rotating on roller cages
- Rain lubrication on the primary shaft
- Lightened desmodromic drum
- Forks with cemented and hardened shoes
- Pre-selection compartment independent and not involved in the opening of the crankcase
- Roller bench bearing
- Complete electric starting group on the engine
WHAT’S IN THE BOX:
- Digital ignition with 36mm diameter rotor
- Electrical installation
- Support electrical components
- NGK BR10EG spark plug with resistive pipette

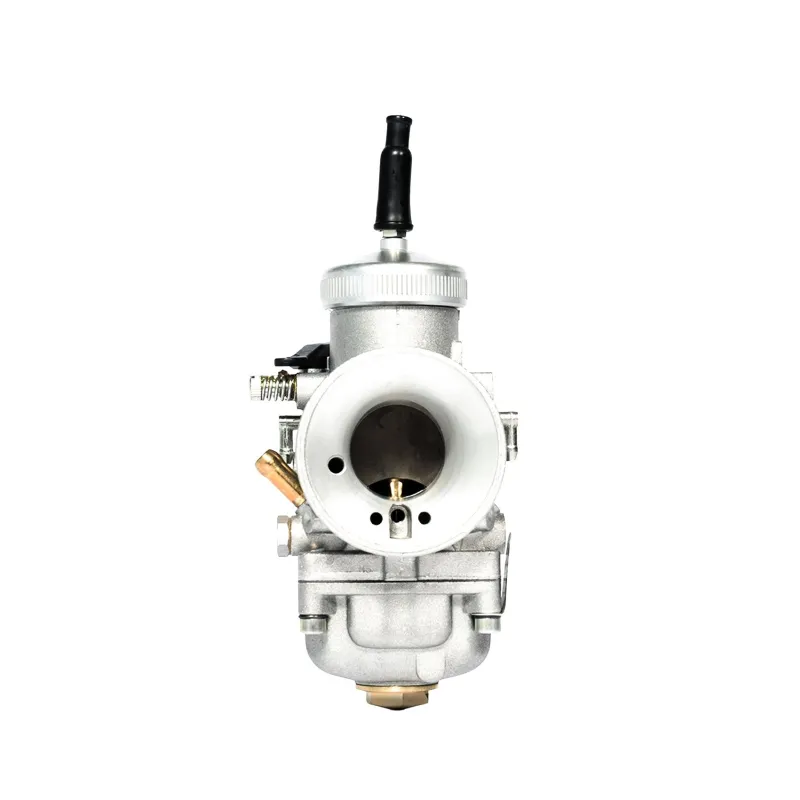

- Carburetor Dell'Orto 36 VHSH 36 RD with rubber fitting and gasoline pump
- Sprocket Z17

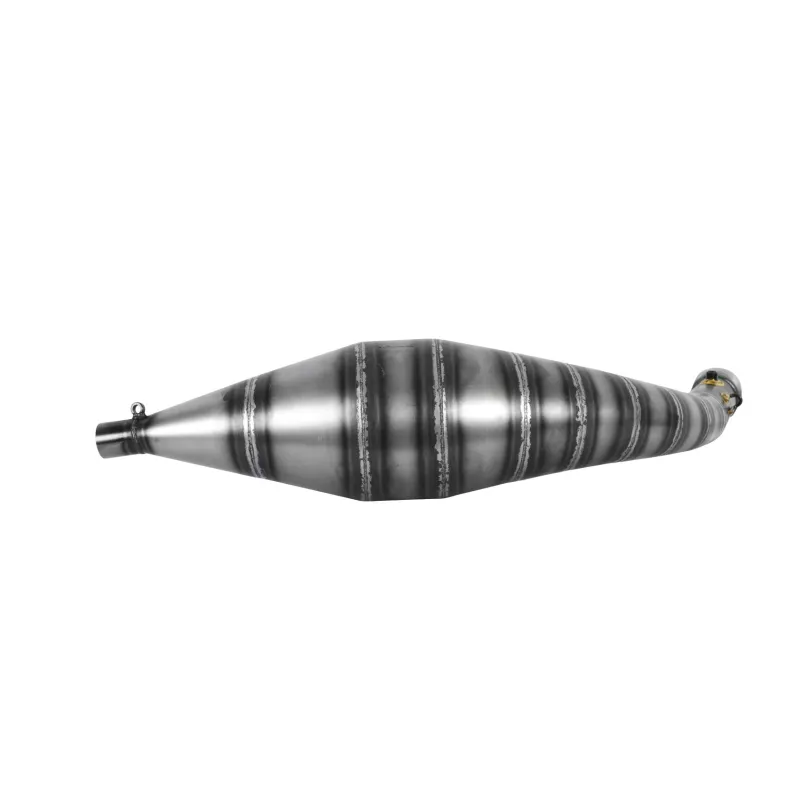

- Muffler
- Universal support plate in magnesium with tripods fixing
- Battery NOT included
- Exhaust and intake silencer, NOT included in the price (these missing accessories are the same used in 125 KZ engines)
ATTENTION: in the drop-down menu you can select whether you want the engine complete with exhaust silencer or not.
Original IAME product.
