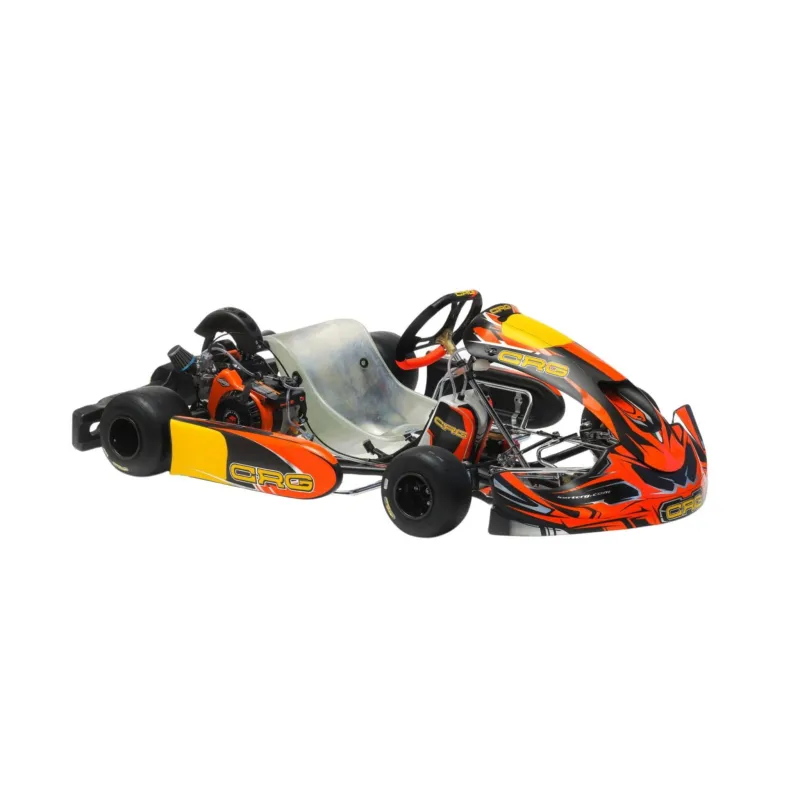

Chassis FS4 Direct Drive CRG
Orderable
CRG.20059
€3,340.00
FS4 model chassis for SENIOR, MASTER and JUNIOR single-speed gearbox, 28mm body tubes with updated homologues.
Order now and receive it on...
✔ between 9/15/26 and 9/22/26 with Worldwide economy
✔ between 9/11/26 and 9/15/26 with Worldwide express
✔ between 9/9/26 and 9/10/26 with Pick-up in Drake Store (Italy)
The FS4 four-stroke chassis, designed for the Briggs&Stratton category, adopts a body with chrome molybdenum steel tubes with a diameter of 28mm and a wheelbase of 1030mm. On the frames of this series it is possible to adjust both the ground clearance of the rear axle and that of the front spindles, furthermore on the front it is possible to record camber and caster very easily thanks to the exclusive Sniper system.
The Ven 11 braking system with self-ventilated disc is mounted throughout the racing range.
The frame comes complete with 507/508 fairings and adhesive kits and the KG rear fairing.
MAIN FEATURES:
- Category: SENIOR, MASTER and JUNIOR direct drive
- Frame: Steel body with 28mm tubes
- Step: 1030mm
- Axle: 50mmx1020mm CRG model – M 20
- Front hubs: 25x82 R - Line
- Rear hubs: CRG 10-25 RX
- Rims: MG H 132 – MG H 212
- Braking system: VEN 11 – CADET model
- Tank: 5 liters
- Fairings: 507/508
- Rear bumper: KG - CIK
- Tires: VEGA – BRIGGS
- Engine: Briggs & Stratton 206cc
- Minimum weight in competition: 145kg (Senior) - 155Kg (Master) - 130kg (Junior)
WARNING: in the drop-down menu you can choose whether you want the kart complete with engine or not.
Original CRG product.
