Carburetor VHSH 30 CS DELL'ORTO
Last items in stock
09303
84099100
€197.58
-5%
€187.70
Lowest price within 30 days before promotion {{omni_price}} €187.70

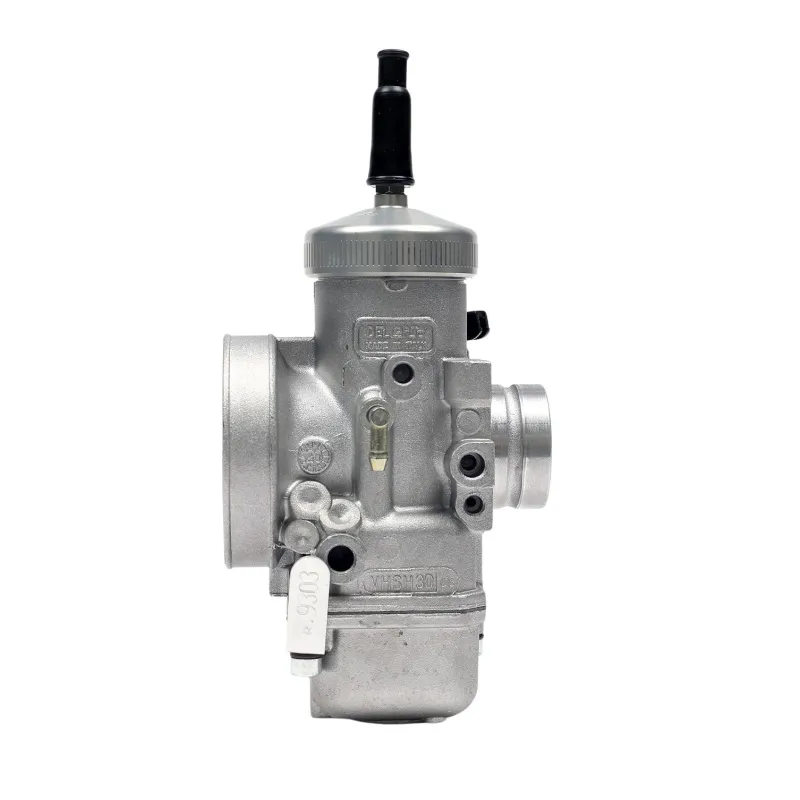

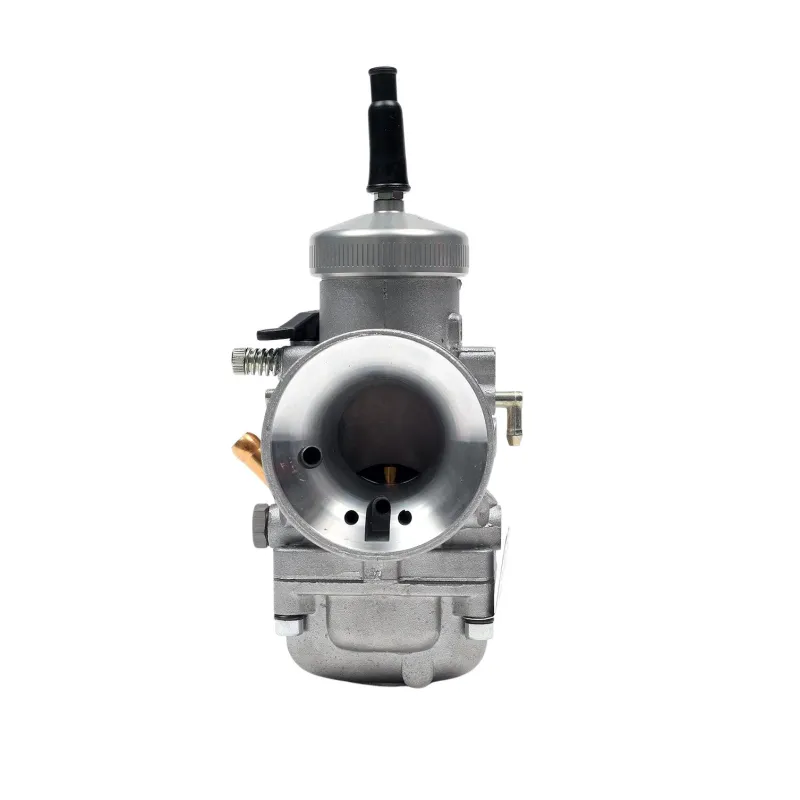

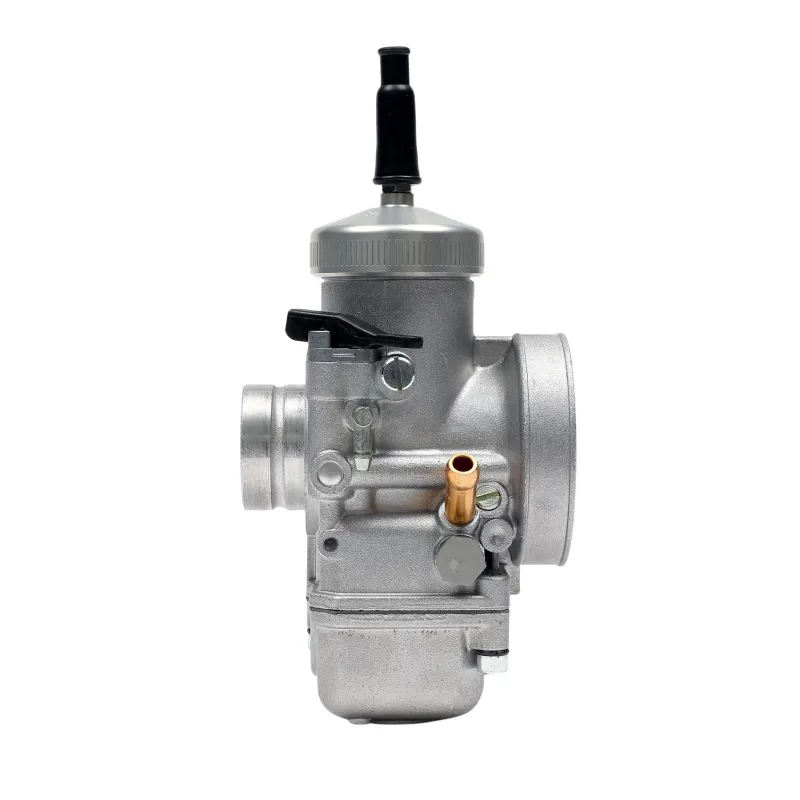

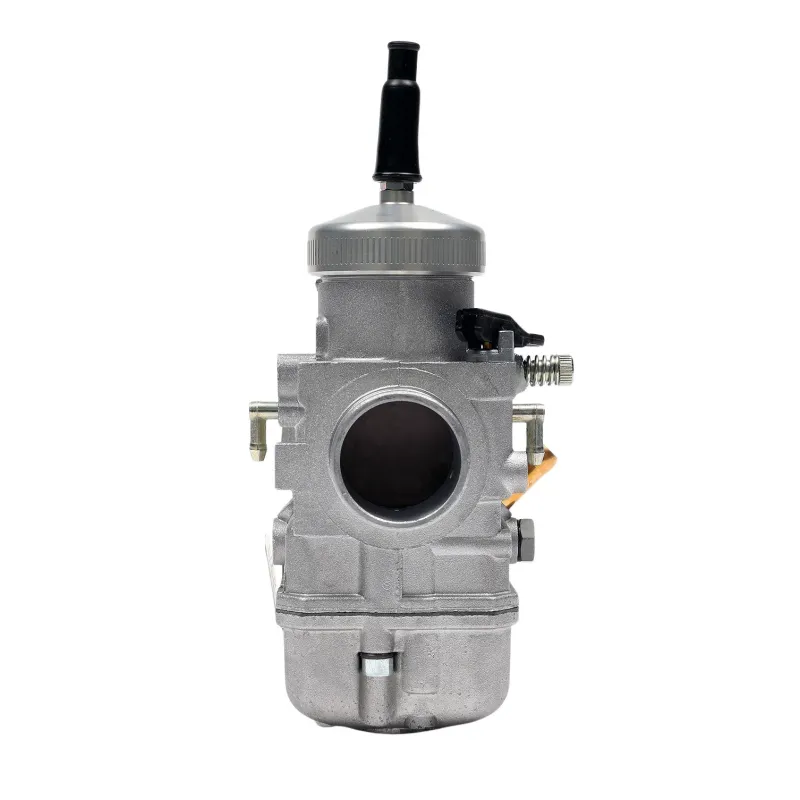

Model VHSH 30 CS carburetor from the DELL'ORTO brand, suitable for general use on 2-stroke engines for 100cc and 125cc karts.
Order now and receive it on...
✔ between 9/1/26 and 9/8/26 with Worldwide economy
✔ between 8/28/26 and 9/1/26 with Worldwide express
✔ between 8/26/26 and 8/27/26 with Pick-up in Drake Store (Italy)
The VHSH 30 CS carburetor from the DELL'ORTO brand is a needle carburetor that, thanks to the significant adjustments available, represents a real compromise between the racing world and that of series production.
High performance model with aluminum body, designed for 2-stroke engines.
- Engine: 100-125cc, 2-stroke engine
- Application: Kart
- Place of production: Made in Italy
- Venturi diameter: 30mm
FEATURES:
- Flat gas valve
- Diffuser reported
- Independent circuit starting device
- Idle system with jet and screw air regulation
- Maximum system with mechanical adjustment of the mixture by means of a conical needle
- Versions with screws minimum right and/or left adjustment
- Tub with the possibility of mounting independent floats
- Elastic mounting attachment diameter 35
- Air intake connection diameter 64 for fitting assembly and special for free suction
- Material: Die-cast in Zama
Jets for standard carburetor setting:
- Gas Valve 50
- K98 pin
- 268DP Pulverizer
- Main jet 180
- Idle jet 60
- Minimum Emulsion Tube B48
- Air Jet 60
- Pin Valve 300
- Floating – 9.0 grams
The Dell'Orto components proposed here are recommended for use in the Go-Kart industry. We gladly provide technical support for any doubt, but we do not assume responsibility for different applications or uses.
Original DELL'ORTO product.
DEL09303
09303
84099100
