Chassis NOESIS T OK EXPRIT KART
Orderable
EXP1043
€4,205.00
-10%
€3,784.50
Lowest price within 30 days before promotion {{omni_price}} €3,784.50

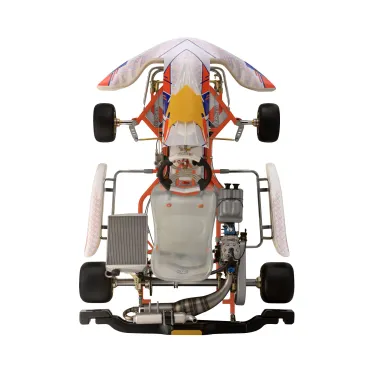

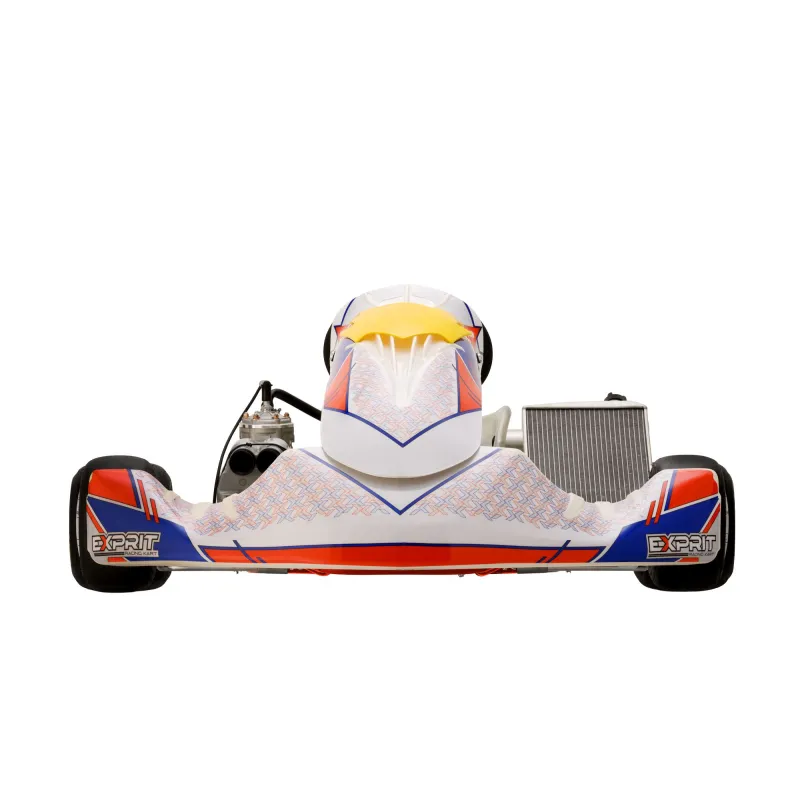

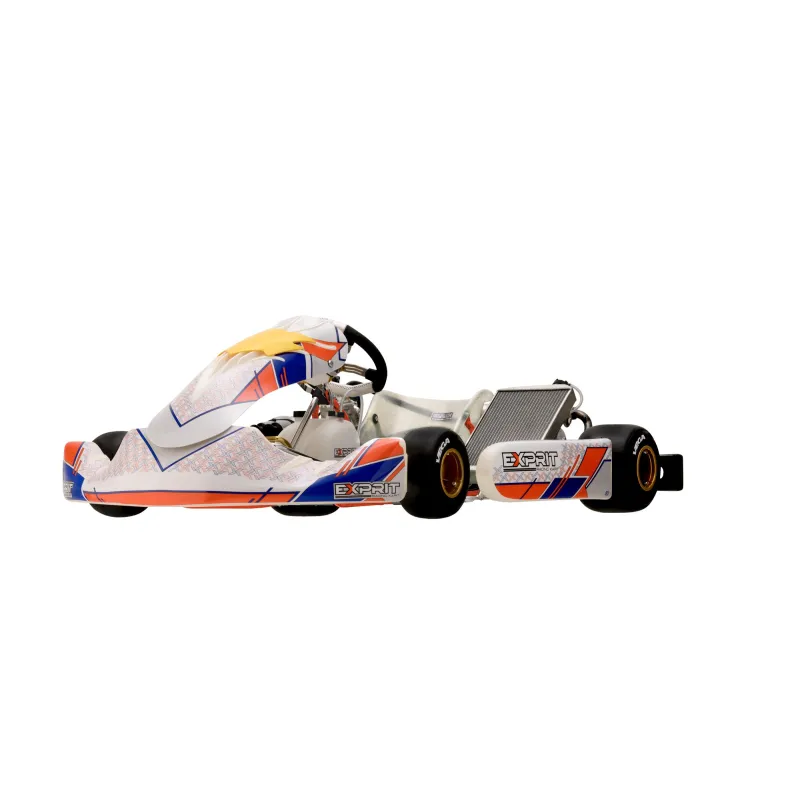

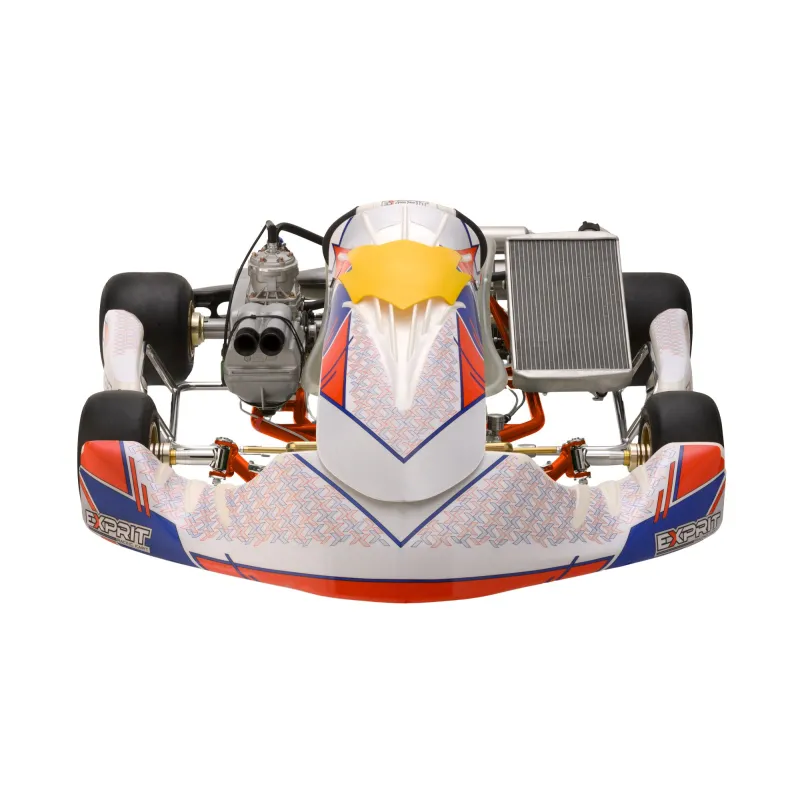

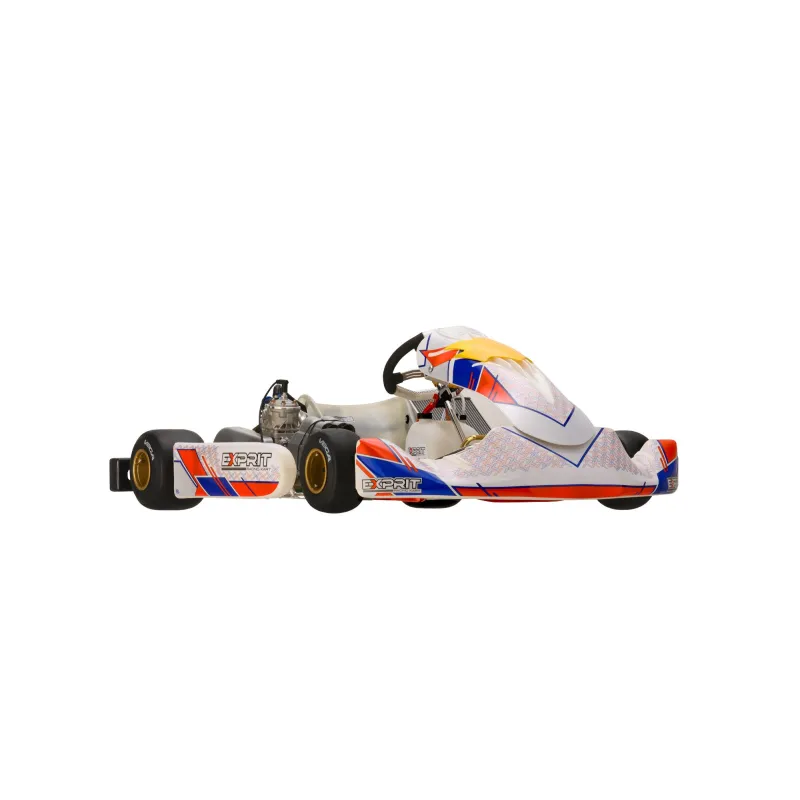

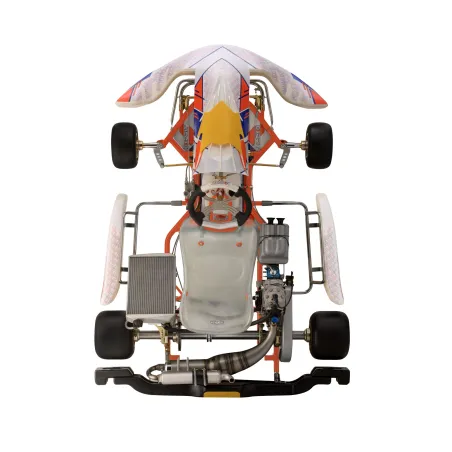

NOESIS T model frame for category OK (Direct Drive) of the EXPRIT KART brand.
Available from the drop-down menu is the option to configure the frame as you wish.
Order now and receive it on...
✔ between 4/7/26 and 4/14/26 with Worldwide economy
✔ between 4/3/26 and 4/7/26 with Worldwide express
✔ 4/1/26 with Pick-up in Drake Store (Italy)
The NOESIS model confirms itself as the top frame of Exprit Kart also in its latest evolution called "T". The R&D department of OTK Kart Group has introduced several new features, as well as many confirmations compared to the past. These include a production chain capable of guaranteeing the highest levels of quality and a body made entirely of 30mm diameter pipes.
In line with the standards offered by the brand's products, the R&D department of OTK Kart Group has studied and introduced several technical innovations. Above all, the new M11 fairing kit and the new BWD braking system. Details were also worked on for the 2025 product range, with the introduction of a new aluminum chain tensioner attached to the bearing support. Not only technical solutions, but also aesthetic ones, those presented with NOESIS T: the new frame is now characterized thanks to the adhesive kit with a totally new design.
NEW LOOK AND MAXIMUM PERFORMANCE
The goal of continuously improving the aerodynamic efficiency of its products has prompted OTK Kart Group's R&D department to develop the new M11 fairing kit, which complies with current FIA regulations. Thanks to CFD simulations and wind tunnel tests, as well as track tests by OTK's reference racing department, it was possible to create a new front number spoiler and a new front bumper with an innovative design, both capable of significantly reducing aerodynamic drag, resulting in improved track performance. Completing the M11 kit are the side fairings and rear protection that are part of the M10 package, introduced with the previous homologation. In addition, we also find the full coverage floor that further optimizes performance, reducing turbulence. The entire set is finally embellished with the new Exprit Kart stickers, with a completely new design.
NEW FOR DIRECT DRIVE CLASSES
Among the most significant new features introduced by Exprit Kart with the Noesis T, the new BWD braking system stands out, designed specifically for direct drive classes, both Junior and Senior. The R & D department of OTK Kart Group has focused its efforts on the use of ultra-high quality materials, with the aim of ensuring maximum efficiency of the components. The new concept, which inspired the project, led to the creation of a system capable of significantly improving heat loss, reducing brake oil temperature and ensuring constant and highly efficient braking in any condition. BWD is offered in two purchase variants, with 180mm or 206mm discs, to meet the needs of all kartists.
A "PRO" PILOT'S SEAT
The various evolutions applied to the Noesis T are combined with several consolidated characteristics. Above all, the adjustable pedals and the inclined flying hub of the OTK Kart Parts line, which allow you to best adapt the driving position, making it ideal for every driver. Other fundamental elements also remain unchanged, such as the HGS steering wheel equipped with a high-grip rubber grip, capable of significantly reducing the driver's fatigue during the various driving phases. This set of solutions (tuned with the contribution of the reference racing department of OTK Kart Group) therefore allows for the simple achievement of an optimal driving position for karters of any size.
The frame has the following standard features:
- Body material: chromium molybdenum steel
- Tube diameter: 30mm
- Step: 1045mm
- Axle diameter: 50mm with CIK-FIA sticker
- Braking system: BWD with DOT 5.1 oil evolution brake lines
- Supplied accessories: magnesium components, MXJ 130-212 wheels, front torsion bar, aluminum pedals
- Fairings: M11 number carrier spoiler, M11 front spoiler complete with CIK-FIA approved attachments and M10 fairings
WARNING: from the drop-down menu you can configure the frame according to your needs, summarized below:
- Braking system: Standard BWD (180x13mm); Optimized ventilation BWD/VO (206x16mm)
- Muffler mount: OK/DVS; Rotax MAX; ROK GP
- Seat size: Size Jr (26.5 - 27.5cm); Size 1 (28 - 29cm); Size 2 (29.5 - 30.5cm); Size 3 (31 - 32cm); Size 4 (32.5 - 33.5cm)
- Engine Plate: undrilled inclined magnesium; drilled inclined magnesium for Rotax MAX and IAME X30; drilled straight aluminum for ROK GP; drilled straight magnesium for DVS, IAME and KF; drilled inclined magnesium for OK
Original EXPRIT KART product.
